Wagner PV100 Pumpset Service Gallery!

 Wagner PV100 Autopilot Pumpset Used in a Model S50 System (Custom & Rebuilt Packages Below).

This Pumpset is the Same Unit used in All Most Wagner Autopilot & Hydraulic Power Steering Applications.

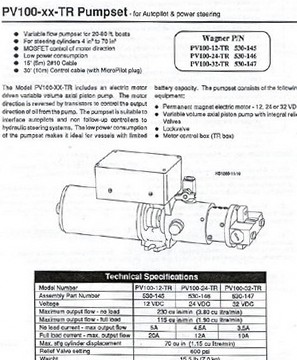

Wagner PV040, PV100, PV140 & PV125 Pump Set SPECS ...  Adjustable Flow Rate For Up To 70 Cu. In. Maximum Cylinder Displacement ... 20A (12vdc), 12A (24vdc) or 10A (32vdc) Max Load

Service Pictures are Displayed Here to Help Boaters whom Want to Rebuild Their Own PV100 Pumpset!

S50 Pilot uses a Tach Mounted to the End of Electric Motor for Rudder Position Reference & a S50 Motor Driver Board ... Both 'Not Needed' for Other Autopilot Models/Steering Systems.

Also, All PV Pumpsets can be used With/Without a Motor Driver/Relay Box!

USE Your Browser ZOOM Feature for a Larger IMAGE View!




PV100 Used in a Wagner SE & SE2 Autopilot ... DOC

CLICK This Link : WAGNER Autopilot & Hydraulic Steering SEAL KITS w/ LIVE PURCHASE Buttons!
